Features

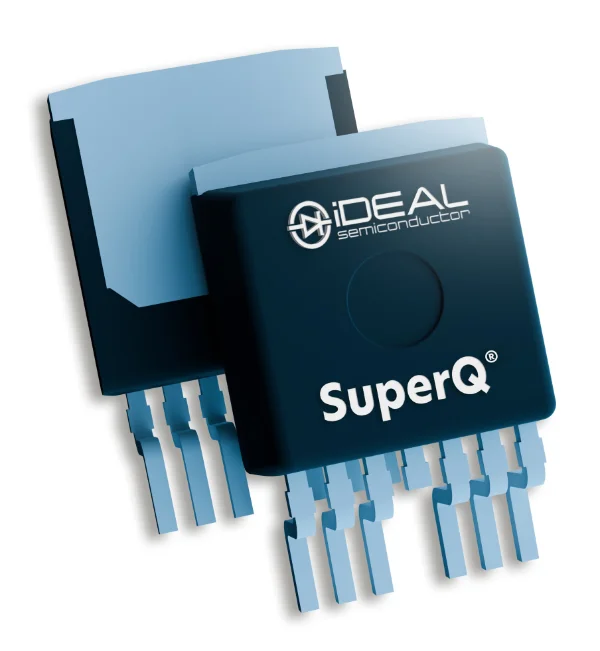

Low RDS(on) in D2PAK-7L package
High short-circuit withstand
capability (SCWC)
100% UIS tested in production
Low switching losses, QSW and EOSS
Easier paralleling with ± 0.5V gate
threshold tolerance
Applications
Motor Control
Boost Converters and SMPS Control FETs
Class D Audio
Battery Management Systems
| Parameter TA = 25°C unless otherwise noted | Value | Unit |
|---|---|---|
| VDS | 200 | V |
| RDS(on) max | 16 | mΩ |
| ID | 61 | A |
| IDM | 227 | A |
| QG | 29 | nC |
| QSW | 3 | nC |
| EOSS | 1.5 | μJ |
| VGS | ± 20 | V |
| VGS(th) | 2 | V |
| PD | 150 | W |
| TJ,Tstg | 175 | °C |
| EAS | 209 | mJ |
| RθJC | 1 | °C/W |
