What Can SuperQ® Do for Fast Chargers?
As device batteries for consumer electronics get larger, charging speed has become a top user demand. OnePlus reports that 43% of U.S. consumers are frustrated by slow charging, and Android Authority found fast charging is the feature users refuse to give up — even over display or camera quality.
With USB PD 3.1 pushing voltages to 48 V and power to 240 W, true fast charging is now possible across consumer devices.
SuperQ MOSFETs enable higher current per device, stronger transient tolerance, and lower thermal losses — making fast chargers more efficient, compact, and reliable.
5.5mΩ
Industry’s lowest RDS(on) in PDFN 5x6 package
0.8V
Low body diode forward voltage for reduced loss
1.1Ω
Low RG and excellent charge ratio eliminates false turn on
Low QOSS
Industry’s lowest Qoss for improved switching behaviour and ZVS
Low QRR
Improves power loss and reduces overshoot
Avalanche-Rated
Devices are 100% UIS tested in production
SuperQ®
A New Class of Silicon Efficiency
iDEAL Semiconductor's SuperQ technology delivers a step change in performance by reinventing the silicon power switch - no exotic materials required.
Built on a high-aspect-ratio trench structure, SuperQ:
- Drives ~95% silicon utilization—nearly double conventional MOSFETs
- Achieves record-low RDS(on) per mm² and ultra-low switching loss
- Operates with significantly cooler junction temps
- Enables fast switching for high-frequency, compact chargers
- Uses a CMOS-compatible, cost x performance optimized manufacturing flow
Optimized for Modern Consumer Devices
SuperQ is ideal for:
- USB PD 3.1 charging adapters (180W-240W)
- Laptop and tablet chargers
- Smartphone fast-charging hubs
- Docking stations and PD-enabled accessories with integrated power delivery
Fast Charging PD3.1 Block Diagrams
(Asymmetrical Half-Bridge Flyback, AHB)
(QR Flyback)

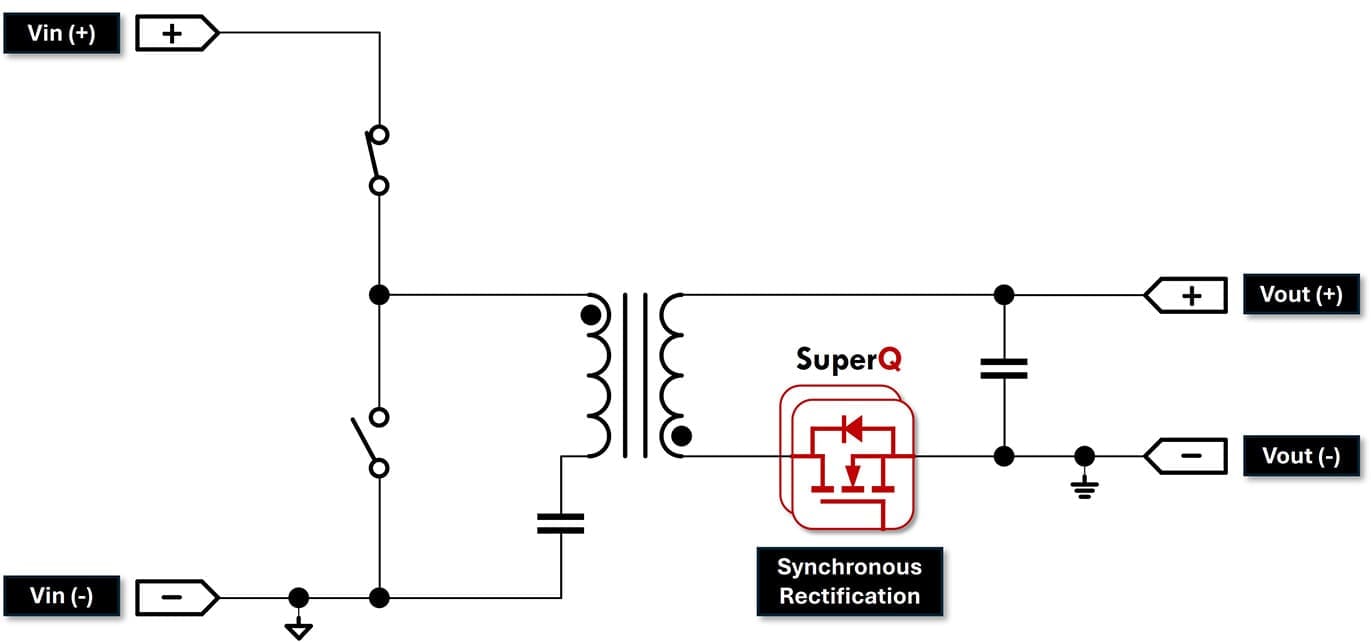

Fast Charging PD3.1 Block Diagram
(Asymmetrical Half-Bridge Flyback, AHB)
SuperQ MOSFETs are available for USB PD & consumer fast chargers
Why SuperQ?
SuperQ delivers low on-resistance and small footprint, enabling:
- Higher power density
- Faster charging times
- Industry-best cost x performance
SuperQ improves efficiency and reduces design complexity, enabling charger designers to support higher currents with fewer devices and enhanced thermal performance.
Increased power
delivery
Faster charging times
Improved power
density
More compact chargers, TVs
and consumer devices
Mature silicon
supply chain
Easier scaling and sourcing
