What Can SuperQ Do for Battery Management Systems?
As battery platforms push beyond 72 V in e-mobility, drones, and power tools, battery management systems must contain extreme fault currents that can surge to thousands of amps in microseconds. Protection circuitry now requires power devices that turn off fast, withstand severe short-circuit stress, and manage thermal losses in compact designs.

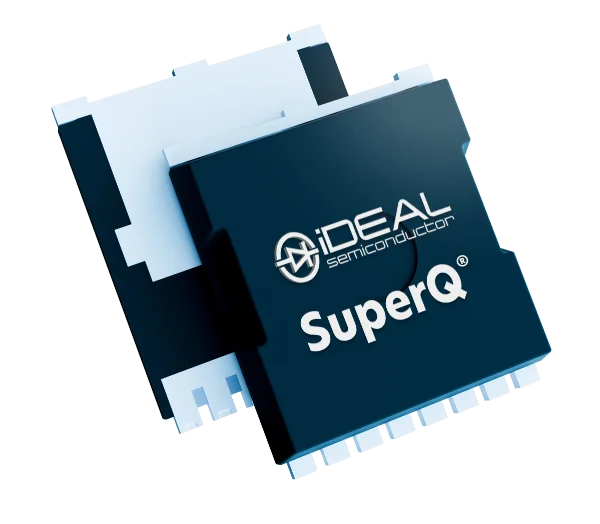

SuperQ MOSFETs raise the safety and performance ceiling of modern BMS architectures - delivering high short-circuit withstand capability, fast fault turn-off, and low-loss operation for next-generation battery protection.
×
SuperQTM
A New Standard for Battery Management Systems
40%
SuperQ is able to withstand 40% higher peak short-circuits than the next-best 150V device
800A
Tested to failure at 800A. This far exceeds the 580A failure point of the next-best alternative
2.5mΩ
Delivers an industry-leading 2.5mΩ RDSon (150V) without sacrificing robustness
50%
SuperQ’s higher current handling allows for up to 50% fewer MOSFETs in parallel, reducing total solution cost
2x

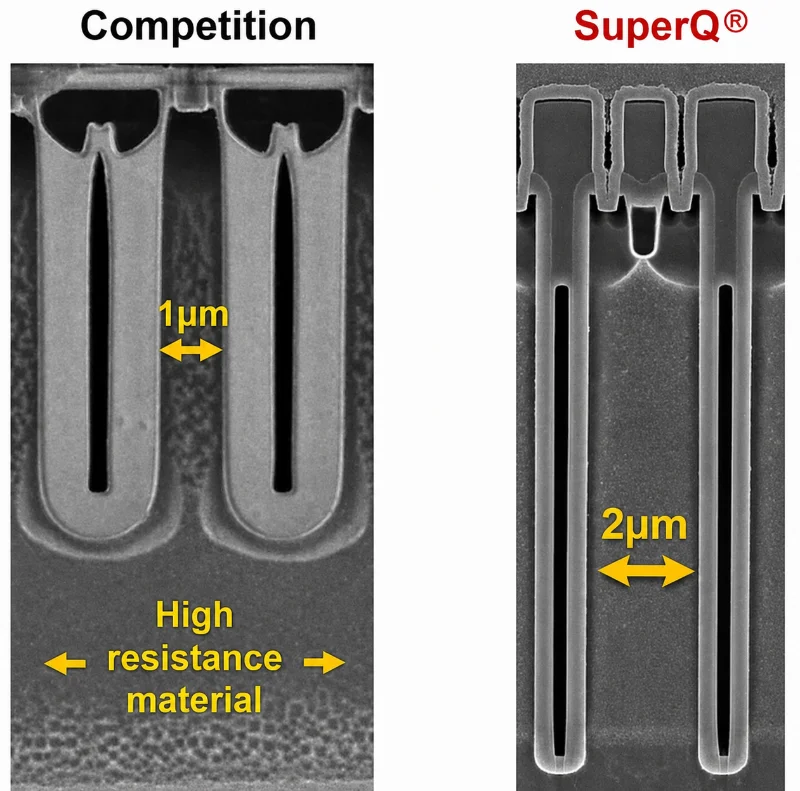

Built with a mesa width 2x the size of our competitors, SuperQ is robust by design vs. our competitors
100% Tested
Designed for strong avalanche capability and fully UIS tested in production
Higher Power = Higher Voltage
As the market expands into higher power applications, so does the demand for more power and higher battery currents. Increasing battery voltages is necessary to decrease battery currents and requires mid-voltage power switches. SuperQ delivers the ideal 150V and 200V power MOSFET product portfolio for protecting 72V to 144V battery packs.

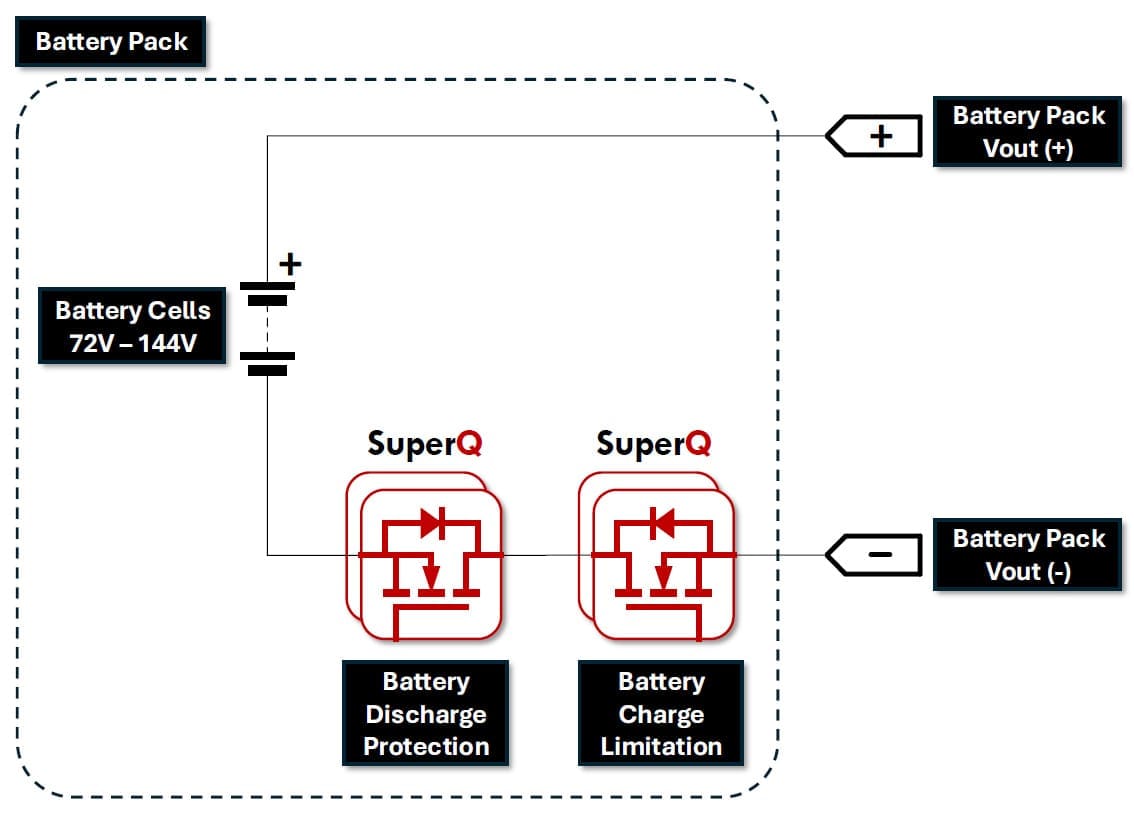

Battery Management System Block Diagram
Battery Management System Block Diagram)
SuperQ MOSFETs are available for 72V to 144V battery architectures.
For datasheets, samples, or application design support:
Why SuperQ?
By combining ultra-low on-resistance with industry-leading short-circuit withstand capability, SuperQ devices enable:
- Safer and more reliable discharge protection
- Reduced component count and BOM cost
- Improved thermal behavior and efficiency
SuperQ delivers a more robust power path—without forcing compromises in size, cost, or complexity.
Up to 42% lower RDS(on)
Up to 1.4x higher short circuit handling
Up to 50% fewer MOSFETs required
Up to 50% lower solution cost
SuperQ Technology Delivers a Robustness Advantage
The superior performance of the SuperQ platform is rooted in its proprietary silicon technology. The asymmetrical charge-balanced structure directly addresses the limitations of previous-generation and competing technologies.
SuperQ maximizes power density and reduces RDSon performance trade-offs, and delivers:
- A wide mesa and wide metal contact
- A higher current density and current ratings
- The industry’s lowest on-resistance
Increased Short
Circuit Protection
Withstand greater short circuit currents without damage to sensitive circuitry
Ruggedness and
Robustness
1.4x higher short circuit withstand current than leading competitor. 100% UIS tested in production.
Performance without Compromise
Achieve lower resistance and high short-circuit handling
