High-Efficiency Silicon Power Devices for Lithium-Ion Motor Control Systems
As demand for e-bikes, e-scooters, light electric vehicles (LEVs), power tools and portable lithium-ion powered systems continues to rise, so does the need for efficient, compact and robust motor drives. These systems must deliver maximum range and torque while fitting into small, cost-sensitive enclosures with limited cooling.
Power devices in these designs must:
- Handle high peak and continuous current
- Survive short circuits, motor stall, and locked-rotor conditions
- Minimize conduction and switching losses to extend battery life
Legacy Silicon Falls Short — WBG Adds Cost
Traditional silicon MOSFETs often lack the efficiency and ruggedness required for modern motor control, especially in 48V–196V lithium-ion battery systems. Meanwhile, wide-bandgap devices may offer an alternative, but at the cost of:
- Higher unit cost
- Increased gate drive complexity
- Lower availability and long-term reliability
- Design-in friction

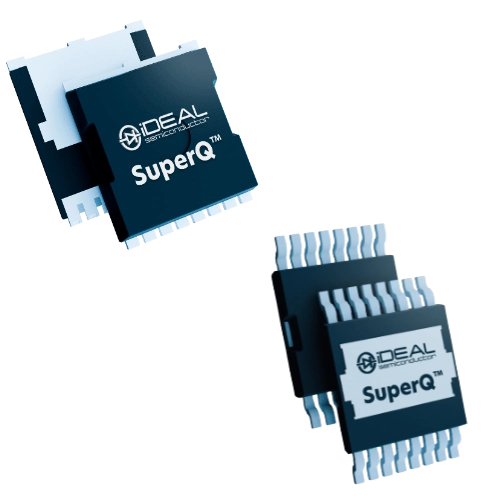

SuperQTM
A New Standard for BLDC Motor Drives
2X
SuperQ cuts switching losses by more than 2x compared to leading alternatives
6.1mΩ
With a maximum on-resistance of just 6.1mΩ at 200V in a TOLL package, SuperQ delivers the lowest resistance in class
75%
SuperQ utilizes 75% of the die area for conduction, delivering higher current densities and better robustness
144A
Rated up to 144A, SuperQ handles more load than comparable 200V TOLL MOSFETs
+ 0.7V
Narrow gate threshold spread of + 0.7V optimizes for parallel MOSFETs
Wide SOA
SuperQ MOSFETs are designed for wide SOA, better linear performance and overall ruggedness
Why SuperQ for Motor Drives?
Lower system
power loss
Longer runtime per charge
Ruggedness and
Robustness
Our devices are designed for wide SOA and are 100% UIS tested in production
Mature silicon
supply chain
Easier scaling and sourcing
Available Power MOSFETs for Motor Drive Systems
SuperQ MOSFETs are available for 48V to 196V battery architectures.
For datasheets, samples, or application design support:
