Features

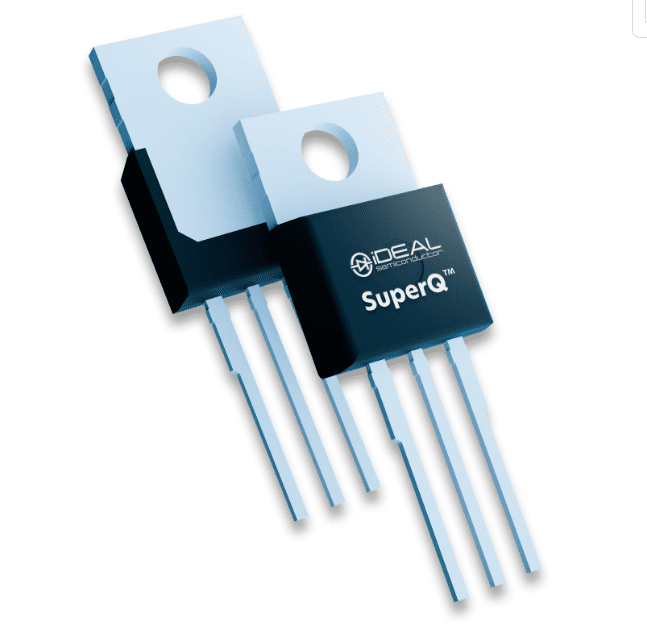

• Low RDS(on) in TO-220 package rated to 175°C
• High short-circuit withstand capability (SCWC)
•100% UIS tested in production
• Low switching losses, QSW and EOSS
• Easier paralleling with ± 0.5V gate threshold
Applications
- Motor control
- Boost converters and SMPS control FETs
- Secondary side synchronous rectifier
| Parameter TA = 25°C unless otherwise noted | Value | Unit |
|---|---|---|
| VDS | 200 | V |
| RDS(on) max | 8.3 | mΩ |
| ID | 128 | A |
| IDM | 476 | A |
| QG | 74 | nC |
| QSW | 5.2 | nC |
| EOSS | 3.0 | μJ |
| VGS | ± 20 | V |
| VGS(th) | 3.5 | V |
| PD | 250 | W |
| TJ,Tstg | -55 to 175 | °C |
| EAS | 176 | mJ |
| RθJC | 0.6 | °C/W |
