| Supplier | Part number | Manufacturer | Stock | Link |
|---|---|---|---|---|
| Richardson Electronics | iS20M5R5S1T | iDEAL Semiconductor | 200 | — |
| Richardson Electronics | iS20M5R5S1T-TR | iDEAL Semiconductor | 2000 | — |
Features

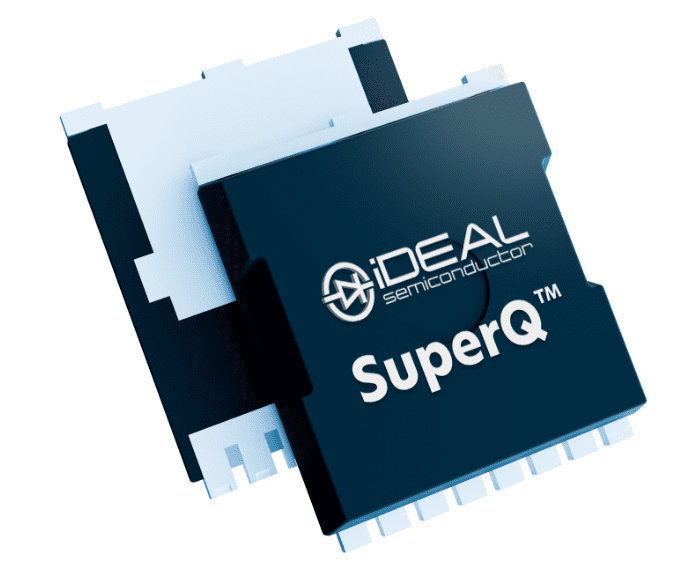

• Industry-leading RDS(on) in TOLL package
• High short-circuit withstand capability (SCWC)
• 100% UIS tested in production
• Low switching losses, QSW and EOSS
• Easier parallelling with ± 0.5V gate threshold
Applications
- Motor control
- Boost converters and SMPS control FETs
- Secondary side synchronous rectifier
| Parameter TA = 25°C unless otherwise noted | Value | Unit |
|---|---|---|
| VDS | 200 | V |
| RDS(on) max | 5.5 | mΩ |
| ID | 151 | A |
| IDM | 538 | A |
| QG | 112 | nC |
| QSW | 8.3 | nC |
| EOSS | 4.0 | μJ |
| VGS | ± 20 | V |
| VGS(th) | 3.5 | V |
| PD | 314 | W |
| TJ,Tstg | -55 to 175 | °C |
| EAS | 432 | mJ |
| RθJC | 0.5 | °C/W |
