Features

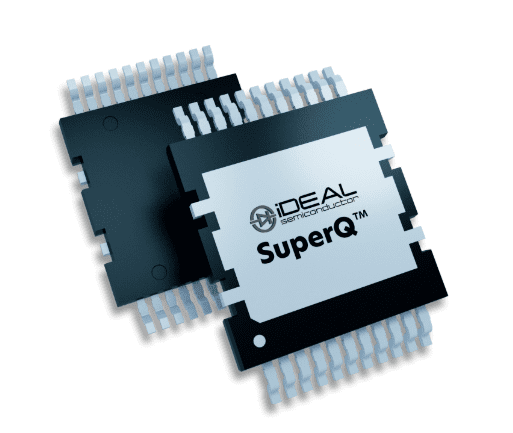

• Industry-leading RDS(on) in QDPAK package
• High short-circuit withstand capability (SCWC)
• 100% UIS tested in production
• Low switching losses, QSW and EOSS
• Easier paralleling with ± 0.5V gate threshold
Applications
- Motor control
- Boost converters and SMPS control FETs
- Secondary side synchronous rectifier
| Parameter TA = 25°C unless otherwise noted | Value | Unit |
|---|---|---|
| VDS | 200 | V |
| RDS(on) max | 2.3 | mΩ |
| ID | 369 | A |
| IDM | 1168 | A |
| QG | 285 | nC |
| QSW | 20 | nC |
| EOSS | 10.0 | μJ |
| VGS | ± 20 | V |
| VGS(th) | 3.5 | V |
| PD | 750 | W |
| TJ,Tstg | -55 to 175 | °C |
| EAS | 4147 | mJ |
| RθJC | 0.2 | °C/W |
