Highly Robust Silicon Power Devices for Battery Management Systems

The accelerating shift to high-voltage battery platforms (72V and above) in e-mobility, drones and power tools is placing unprecedented demands on battery management system (BMS) protection circuitry. This circuitry must protect the battery pack in the event of an external short-circuit, which would see currents spike to thousands of amps in microseconds.

Power devices in these designs must:

  • Provide very high short-circuit withstand capability (SCWC)
  • Turn-off quickly to protect the battery pack
  • Minimize losses and prevent excessive thermals

SuperQ Technology Delivers a Robustness Advantage

The superior performance of the SuperQ platform is rooted in its proprietary silicon technology. The asymmetrical charge-balanced structure directly addresses the limitations of previous-generation and competing technologies.

SuperQ maximizes power density and reduces RDSon performance trade-offs, and delivers:

  • A wide mesa and wide metal contact
  • A higher current density and current ratings
  • The industry’s lowest on-resistance

SuperQTM

A New Standard for Battery Management Systems

40%

SuperQ is able to withstand 40% higher peak short-circuits than the next-best 150V device

800A

Tested to failure at 800A. This far exceeds the 580A failure point of the next-best alternative

2.5mΩ

Delivers an industry-leading 2.5mΩ RDSon (150V) without sacrificing robustness

50%

SuperQ’s higher current handling allows for up to 50% fewer MOSFETs in parallel, reducing total solution cost

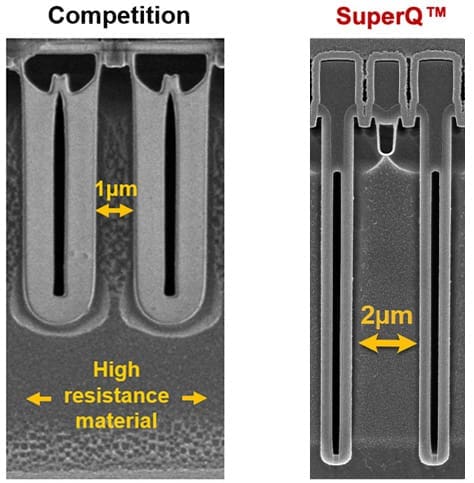

2x

Built with a mesa width 2x the size of our competitors, SuperQ is robust by design vs. our competitors

100% Tested

Designed for strong avalanche capability and fully UIS tested in production

Why SuperQ for Battery Management?

Why SuperQ for

Battery Management?

Increased Short
Circuit Protection

Withstand greater short circuit currents without damage to sensitive circuitry

Ruggedness and
Robustness

Our devices are designed for high SCWC and are 100% UIS tested in production

Performance without Compromise

Achieve lower resistance and high short-circuit handling

Higher Power = Higher Voltage

As the market expands into higher power applications, so does the demand for more power and higher battery currents. Increasing battery voltages is necessary to decrease battery currents and requires mid-voltage power switches. SuperQ delivers the ideal 150 V and 200 V power MOSFET product portfolio for protecting 72 V to 144 V battery packs.

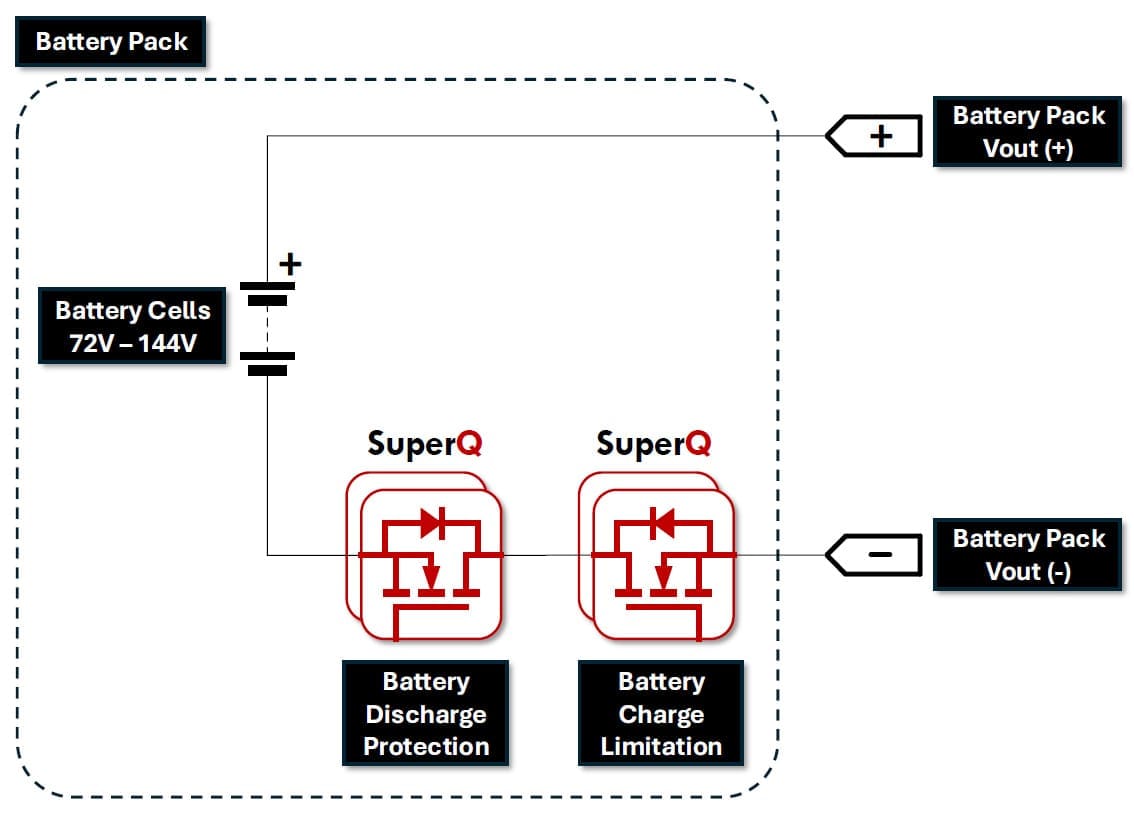

Battery Management System (BMS)

Battery Management System (BMS)

Available Power MOSFETs for Battery Management Systems

Available Power MOSFETs for Battery Management Systems

SuperQ MOSFETs are available for 40V to 144V battery architectures.
